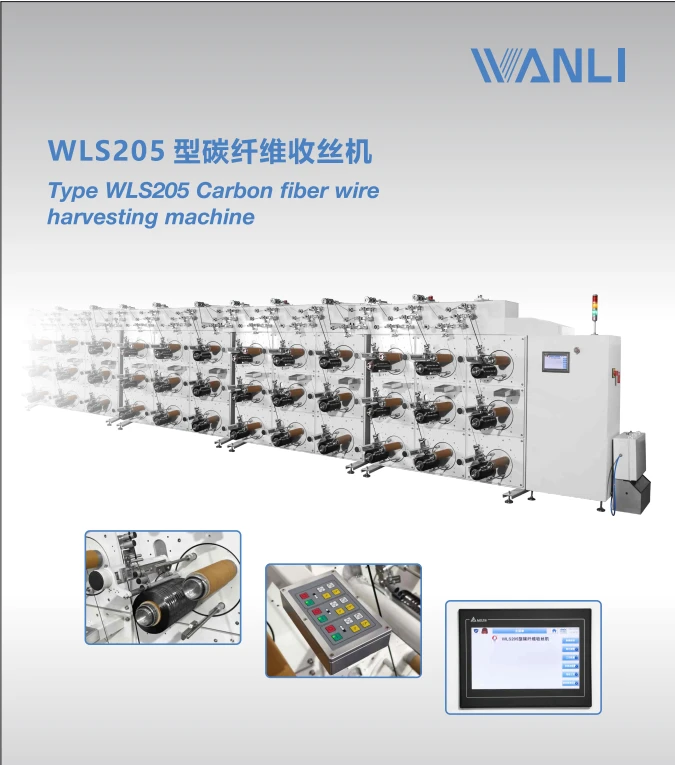

Every strand from your carbide line deserves a perfect package. The WLS205 Carbon Fiber Wire Harvesting Machine transforms raw carbon fiber tow into precisely shaped, uniformly wound yarn cylinders - engineered for repeatable quality, shift after shift.
Built for precision:
Winding range of 1–24K carbon fiber yarn with stable, uniform package formation
Strain-patch sensor tension perception, paired with servo-motor-driven coil forming for consistent, real-time tension control
Maximum linear speed up to 20 m/min - fast, yet always in control
Built for automation:
Automatic tension sensing and control with preset, adjustable back pressure
Pre-programmed winding parameters for hands-free operation
Full-cylinder automatic dual-station switchover - uninterrupted production, no downtime between packages
Built for output:
9 spindles per section, 2–6 kg rolls on 250 mm paper tubes (76.2 mm ID / 85 mm OD, 280 & 290 mm lengths)
200 W servo winding motors, stepper traverse motor (2.2 N·m) and stepper cylinder motor (9 N·m)
2 tons per section - robust, continuous capacity for demanding production lines
Simply connect standard 380 V / 50 Hz power and a 1 MPa air supply, and let the WLS205 deliver consistent, sale-ready carbon fiber yarn packages - automatically, precisely, reliably.
