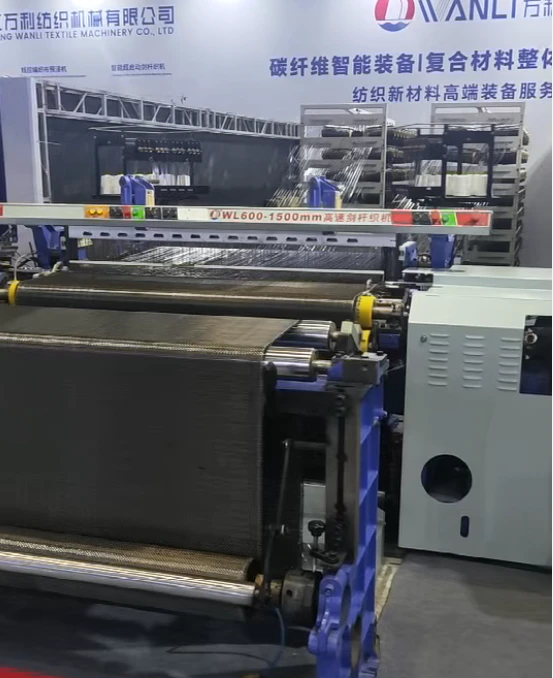

With continuous expansion of the carbon fiber composite market, stable mass production of premium carbon fabrics relies on professionally matched weaving equipment. The WL600 carbon fiber dedicated loom is engineered for specialty carbon fiber fabrics. It integrates yarn unwinding, weaving, heat setting and fabric roll forming into one complete process, satisfying one-stop mass production requirements for carbon fabrics. It serves as a reliable solution for composite enterprises to upgrade production lines.
WL600 delivers outstanding fabric adaptability. It can produce bidirectional carbon fiber square woven fabric and luggage fabric with carbon fiber in both warp and weft directions. It also manufactures unidirectional carbon fabric with carbon fiber warp and hot-melt weft, covering mainstream carbon fabric categories. Compatible carbon fiber tows: 1K, 3K, 6K, 12K, 24K, 25K. Available widths: 150cm, 190cm, 230cm. It supports single-color, two-color and multi-color weaving, granting high flexibility for new product development. Suitable for diversified application scenarios including wind power, rail transit, aerospace and sporting goods.
Core weaving systems are optional to balance process versatility and capital cost. The shedding mechanism can be equipped with an electronic dobby for complex fabric structures, or a tappet drive for simple weave constructions. Fitted with electronic let-off, it ensures smooth yarn delivery and stable warp tension, reducing carbon fiber breakage and fuzziness while preserving the original mechanical properties of carbon tows. Paired with high-precision electronic take-up, weft density accuracy reaches 0.1 pick/cm, adjustable within the range of 0.8–20 picks/cm, delivering consistent weft distribution and excellent batch-to-batch fabric uniformity.
Superb winding & forming quality guarantees neat end faces of finished fabric rolls, with maximum roll diameter up to 800 mm, reducing roll change frequency and boosting continuous production efficiency. It features one-touch automatic weft searching and harness reversing. In case of weft breakage, rapid recovery is available to effectively eliminate stop marks and drastically cut defect rates. The machine adopts multiple lubrication modes: spray lubrication, oil-bath lubrication and nozzle oil feeding. Lower operational wear ensures long-term stable machine operation and easy maintenance.
Comprehensive automatic controls: infinitely variable loom speed adjustment, positioning start & stop, warp break auto-stop, weft break auto-stop and other protective functions. Warp unwinding tension on the creel is spring adjustable. For weft yarn: warp-direction unwinding structure, servo motor-driven weft unwinding, plus air negative pressure to balance weft tension, solving the pain points of carbon fiber brittleness and difficult tension control. Main motor power optional: 4.0KW / 5.5KW. Customers may select according to production capacity planning to balance energy consumption and output capacity.
From raw yarn handling, precision weaving and auto protection to finished fabric winding, the WL600 is specially optimized for the high brittleness and easy-damage characteristics of carbon fiber yarns. One machine handles multiple fabric types, lowering production line investment and stably producing high-quality reinforcing carbon fabrics. Choose WL600 for stable mass production of high-performance carbon fiber woven fabrics, helping composite material enterprises seize market opportunities.
