Textile Weaving Machine 190cm Air Jet Loom Changed From Flexible Rapier Loom

Our Filament Twister Machine, Flexible Rapier Loom, Fiber Twisting Machine for sale are exported to more than 20 countries and regions. Our company introduces technology and imported raw materials, and has strong production capacity and a well-trained and skilled technical team. Our business philosophy is to add value to customer development and company employees. Your choice will prove to become intelligent! Our products have been exported to many countries. We have won high praise from customers at home and abroad and established an honest and trustworthy enterprise image.

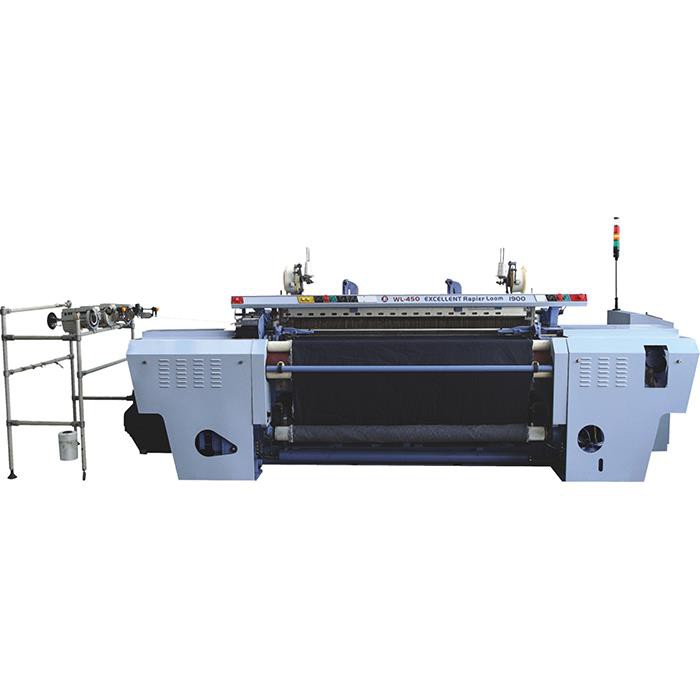

WL450 FLEXIBLE PAPIER LOOM

TECHNICAL PARAMETER

● Application range: suitable for weaving various nature fiber (cotton, hemp, wool, sike etc), polyester, glass fiber and etc.

● Width (cm): 150、190、230 (220)、250、280、320、340、360

● Maximum speed: 300-500rpm

● Weft insertion: four spacial connecting rod drive, no guiding hook, suspending single hook, or suspending double hook weft feeding

● Weft battening: matched cam which in tank wall

● Color selecting: 8 electronic color selecting

● Shedding device: electronic dobby 16 to 20 shafts, or electronic jacquard

● Let off: electronic let off, warp beam 800mm or 1000mm

● Take up: electronic take up, weft density range in 1-150 picks/cm, cloth roll 600mm, or cloth roll out off machine 1200mm

● Lubrication: spray lubrication, oil bath lubrication, oil gas lubrication, four method exist togeter

● Automatic weft seeking: the electromagnetic clutch automatic weft seeking and heald reversing

● Automatic controlling: plc controlling systerm, auto-stop, auto-start, autoweft seeking, over compensation, weft compensation, auto fault recognition and etc

● Main motor: 5.5-7.5kw
